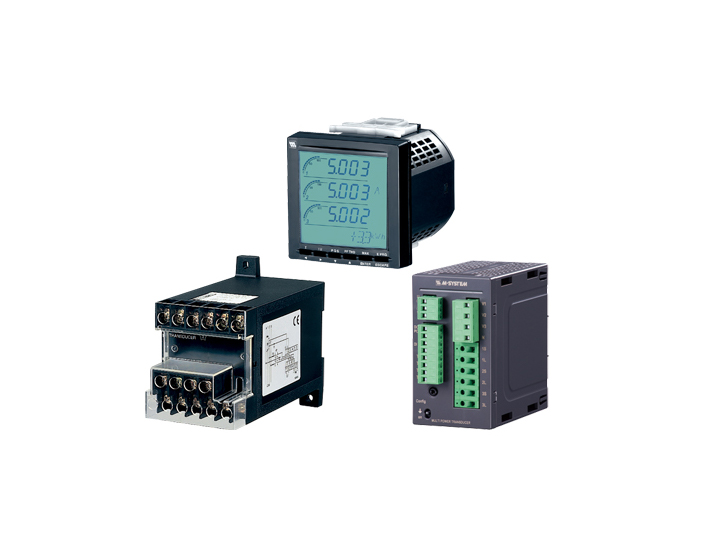

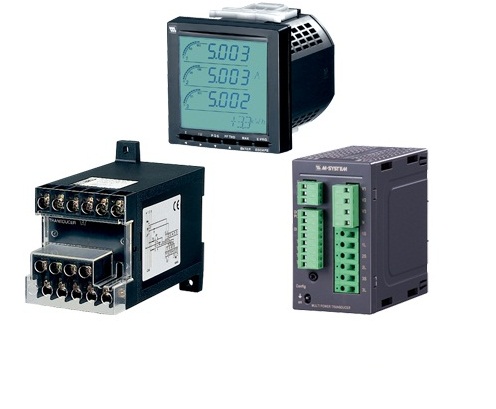

Bộ Chuyển Đổi Công Suất M-system

Multi Power Monitor with Modbus

1/4 DIN (96 x 96 mm) panel size

Four digital displays

Single type module is usable for all of single-phase/2-wire and 3-wire, three-phase/3-wire and 4-wire systems.

All measured variables can be transmitted to the host PC via RS-485/Modbus RTU.

Energy count pulse or limit alarm output selectable

Up to 4 optional analog outputs

Programming lock to prevent unwanted configuration changes

Input range up to 480 Vac, 1 A or 5 A

Multi Power Monitor with Modbus & CC-Link

110 x 110 mm panel size

Robust screw terminal connection

Four digital displays

60-segment bargraph

Single-phase/2-wire and 3-wire, three-phase/3-wire and 4-wire systems

All measured variables can be transmitted to the host PC via RS-485/Modbus RTU or CC-Link,L_ONW_ORKS

Energy count pulse or limit alarm output selectable

Up to 4 optional analog outputs

Programming lock to prevent unwanted configuration changes

Input range up to 480 Vac, 1 A or 5 A

Multi Power Transducer with Modbus

Single type module is usable for all of single-phase/2-wire and 3-wire, three-phase/3-wire and 4-wire systems.

All measured variables can be transmitted to the host PC via RS-485/Modbus RTU.

Energy count pulse or limit alarm output selectable

Up to 4 optional analog outputs

Remote and local programming using the PC Configurator Software

Input range up to 480 Vac, 1 A or 5 A

DIN rail mounted

Multi Power Transducer with 10 Analog Outputs

Measures AC current, voltage, active/reactive/apparent power and power factor

10 x DC voltage/mA outputs plus 2 x Do

Parameters are freely programmable with the front control buttons or by PC

DIN rail mounted

Power Transducers

AC current up to 5A,
AC voltage up to 550V.

True RMS sensing

Auxiliary powered and self powered types selectable

Surface or DIN rail mounting

M4 screw terminal

Conform to IEC 60688

Optional terminal cover

Additional pulse rate output for totalizing counter for watt transducers

High AC Current Transmitter with lntegral Probe

Detecting high current at the flexible current probe and
providing a porportional low-ripple standard signal

appropriate for computer use

Wide frequency band can be accepted

Clipped around a conductor without disconnecting the conductor

Rogowski coil type

Isolation up to 2000 V AC

High-density mounting
